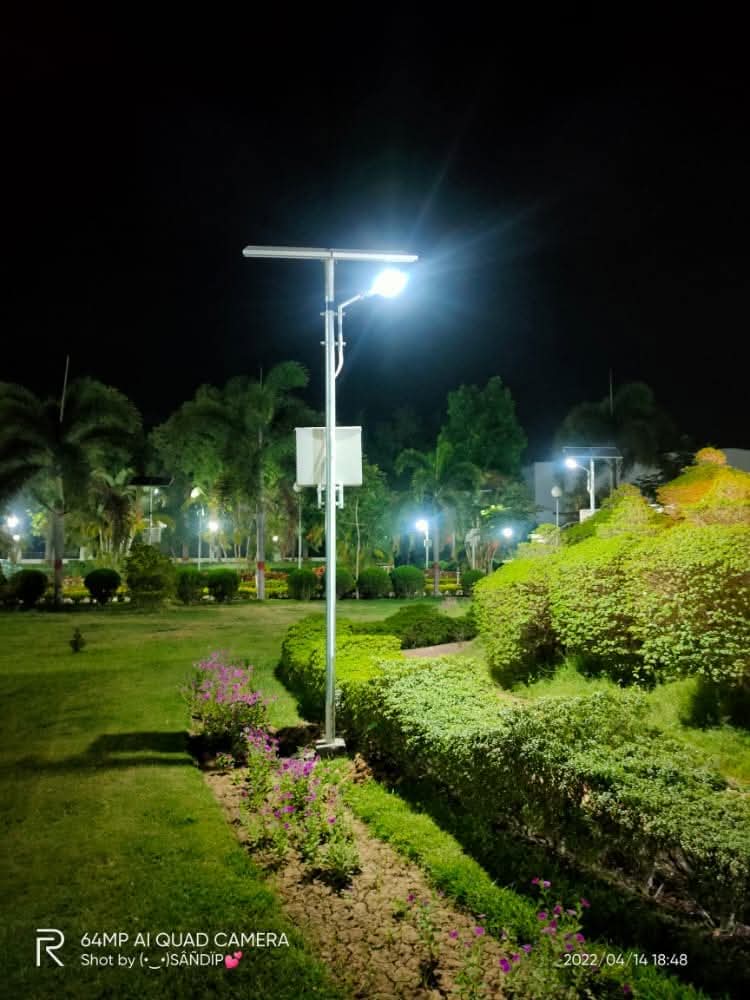

SOLAR STREET LIGHT

Solar lights can be the best solution where ample sunlight is available. Communities can use natural light sources to illuminate parks, streets, gardens, and any other public areas. Solar-powered street lights can offer Ecofriendly solutions to communities. Once you have installed solar street lights, you will not have to rely on the grid for electricity. Also, it will bring positive social changes. The solar street light price is less if you consider the longterm benefits.

content-photo

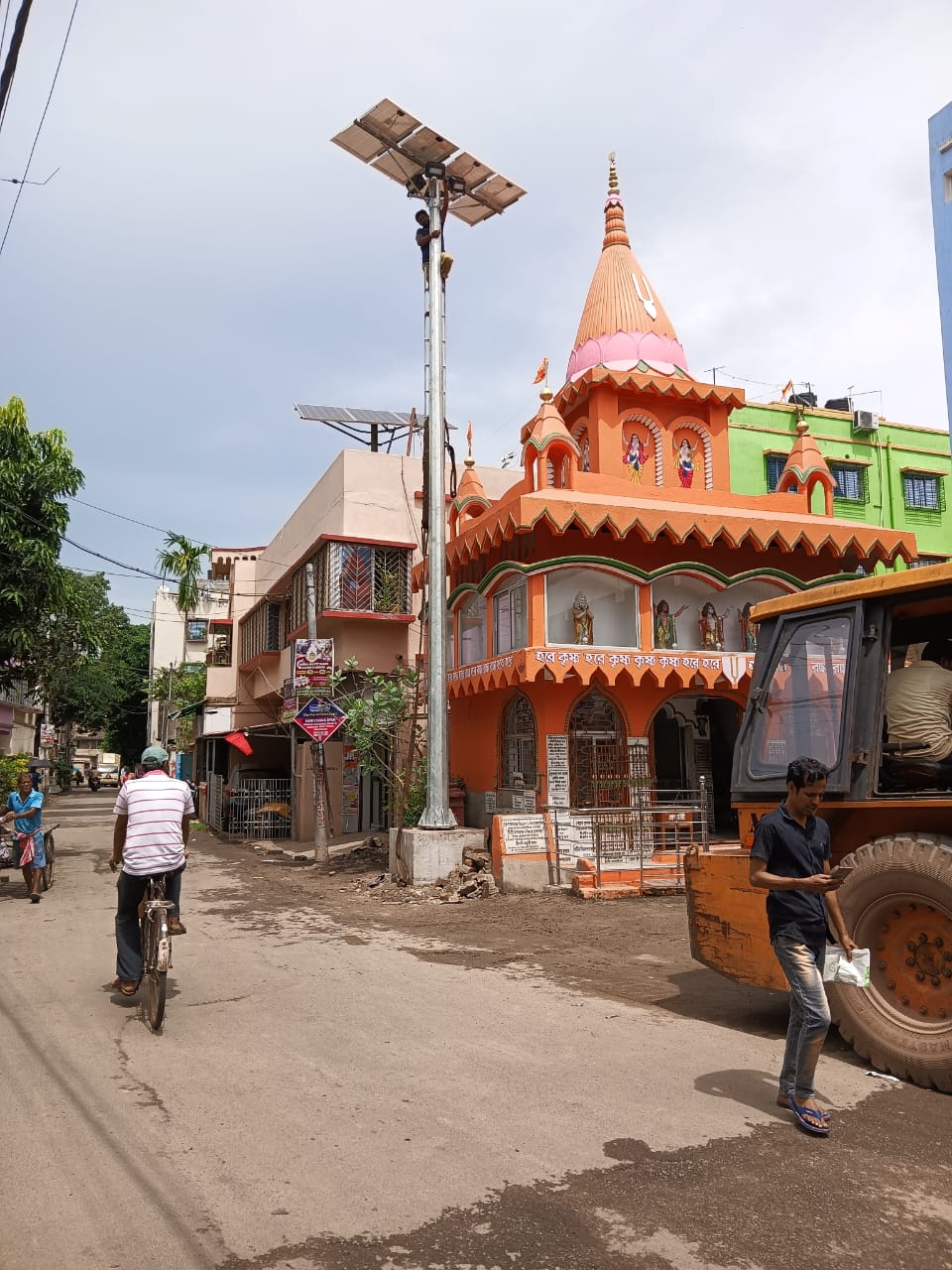

SOLAR HIGH MAST LIGHTING SYSTEM

PV Module: Only indigenous modules shall be used in the Project. SPV module aggregate capacity 500 Wp (125 Wp X 4 Nos.) at under STC. Module Voc minimum of 21V.
Battery (Li-fe-Po4): Lithium Ferro Phosphate battery aggregate capacity 12.8 Volt, 200AH (50AHx4 nos.) 12.8 Volt 50 Ah of one unit. Light Source: White Light Emitting Diode (W-LED) 4x33 Watt ( LED +Driver) Using LEDs which emits ultraviolet light will not be Permitted
Light Output: White colour (colour temperature 5500-6500 K). Lumen efficacy of LED- min 135 lumens/Watt @350 mA. The illumination should be uniform without dark bands or abrupt variations, and soothing to the eye. Higher light output will be preferred. Average duty cycle: Dusk to dawn

content-photo

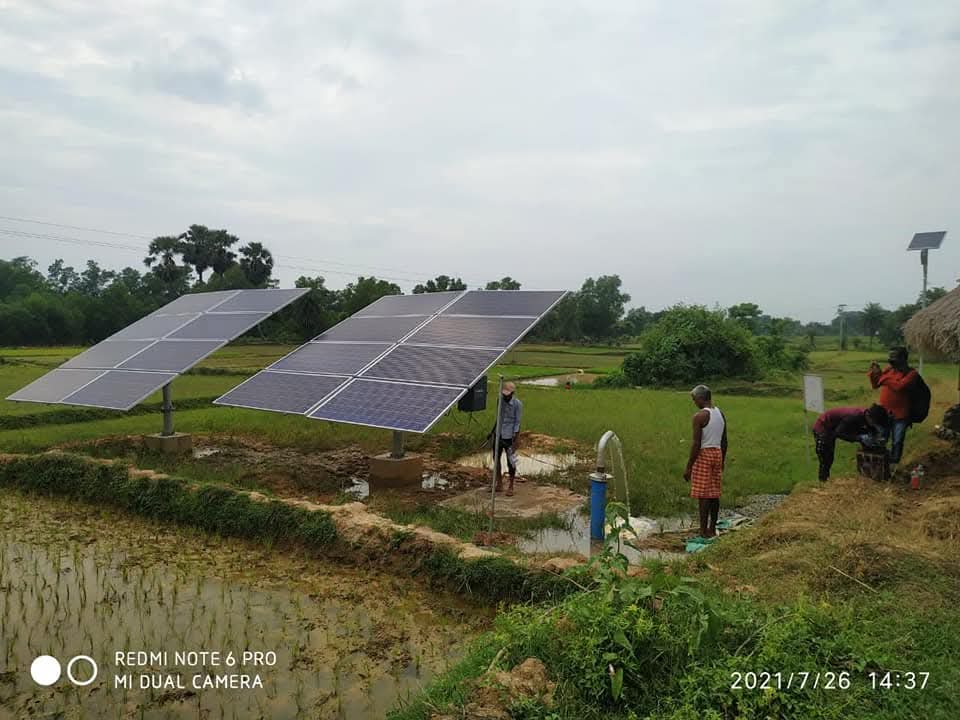

SOLAR WATER PUMPING SYSTEM

The system operates on power generated using solar PV (photovoltaic) system. The photovoltaic array converts the solar energy into electricity, which is used for running the motor pump set. The pumping system draws water from the open well, bore well, stream, pond, canal etc. The system requires a shadow-free area for installation of the Solar panel.
One of the following motor-pump sets compatible with the photovoltai carray- Submersible pump set Open well pump set Submersible pump set
ADVANTAGES:
 No fuel cost - as it uses available free sun light
 No electricity required
 Long operating life
 Highly reliable and durable
 Easy to operate and maintain
 Eco-friendly
 Available from 0.5hp to 35hp capacity

content-photo

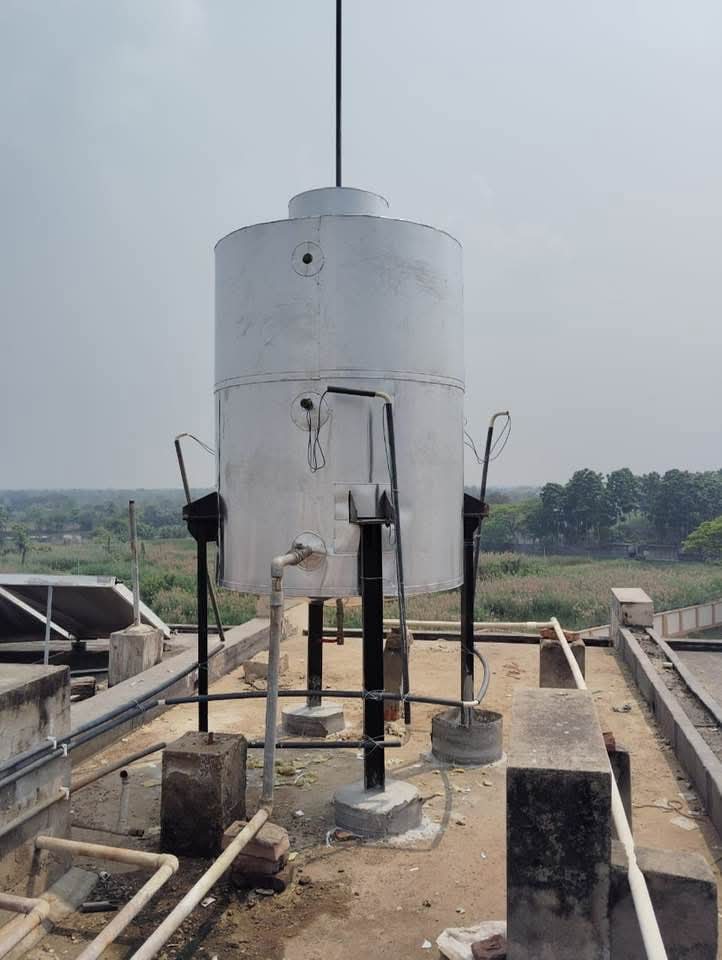

SOLAR WATER HEATING SYSTEM

System Types: Flat Plate Collector/Evacuated Tube Collector Available Capacity: 100LPD-25000LPD(FPC)/100LPD to 500LPD(ETC)

FPC


 Low maintenance cost. Long lasting life: around 25 years.
 Smart design with horizontal vertical mounting.
 Toughened hail proof glass to protect inner tubes.

ETC


An ETC collector is made of double layer borosilicate glass tubes evacuated for providing insulation. The outer wall of the inner tube is coated with selective absorbing material. This helps absorption of solar radiation and transfers the heat to the water which flows through the inner tube.
